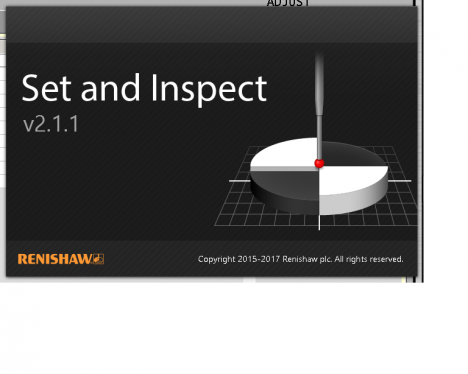

Renishaw Set and Inspect

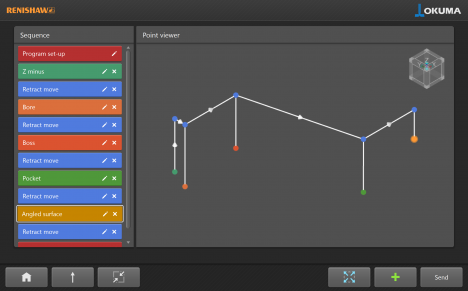

Renishaw's Set and Inspect is a simple, intuitive, on-machine probing app for customers who require an easy-to-use probing solution. Integrated help allows the user to easily create probing routines, whether they are manually run, single cycles or fully automated probing programs.

Description

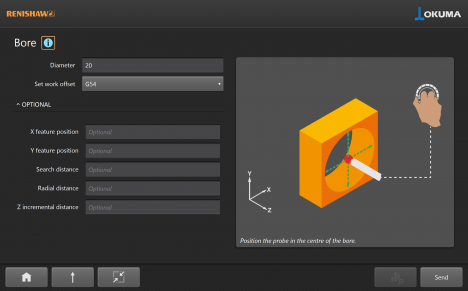

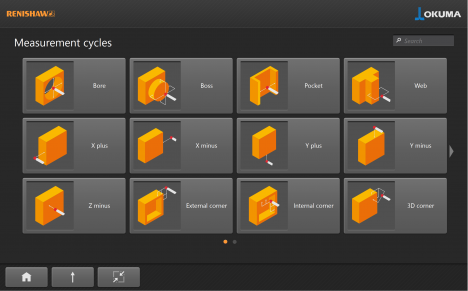

So easy to use that only minimal user training and product documentation is necessary, users can get up and running immediately, making the app perfect for those who have little to no probing experience or machine code knowledge. The user simply selects a probing cycle from the menu and completes the user input fields. The app does the rest, automatically generating the required machine code for the probing cycle and loading it to the control, significantly reducing data entry errors and programming times.

The dynamic representation of the menus and probing cycles, based on selected machine type, means that a single app can be used across a wide range of machine tools and CNC controls, whilst ensuring that it remains easy to use.

Renishaw's Set and Inspect is an innovative machine tool app that supports part setting, part inspection, contact and non-contact tool setting cycles. The app is perfect for users with no probing experience, or for existing probe users who want to simplify and revitalise their current probing system.

Details

Updated: 11/16/2017
Available Versions: 2.1.1.7
Size: 130,904 KB
Functionality: Measurement/ Gauging

Compatibility:

The downloadable app is for PC-based evaluation only.

The machine-based app (available from Renishaw or Okuma), Renishaw part number A-5999-1400, must meet the following machine requirements:

Operating Systems: Windows 7, 8, and 10
THINC API Version: 1.12.0.0 or later
.NET Framework Version: 4.0 /client or later
OSP Control Types: P200 or later
Machine Types: All machine types (except grinders), including PC (demo mode)
Required Items: purchase of Renishaw hardware and macro-based software for CNC controller installations. No macro software is required for PC based installations

Renishaw's Set and Inspect works in conjunction with Renishaw probing hardware systems and software packages. A Renishaw spindle probe and/or tool setting system must be installed on the machine tool.

About The Developer

Company: Renishaw plc
Phone: 905.828.0104
Email: clinton.christian@renishaw.com

Renishaw is one of the world's leading engineering and scientific technology companies, with expertise in precision measurement and healthcare. The company supplies products and services used in applications as diverse as jet engine and wind turbine manufacture, through to dentistry and brain surgery.

The Renishaw Machine Tool products division is dedicated to producing high quality software products to compliment it's extensive range of hardware products. Renishaw is committed to developing a range of machine tool apps for our customers which make installing, configuring, using and maintaining our systems even easier.
